Manufacturer: MECASTEEL-SACMA (Italy)

Working direction: left to right
Pass-line = approx. 1,200 mm.

1. MATERIAL SPECIFICATIONS:

Cold rolled/galvanized coils.
Maximum width: 1,250 mm
Min/max thickness: 0.4 – 3 mm (370 N/mm2)
Maximum coil weight: 12 t
Internal diam. (uncoiler): 500 mm
Internal diameter (recoiler): 508 mm

2. PERFORMANCE:

Speed: max 100 m/min
Min-max strip width: 30 – 1.250 mm
Total installed power: 160 Kw
Air pressure: min 6 bar required
Supply voltage: 400 (380)V-50Hz

3. DESCRIPTION OF THE LINE:

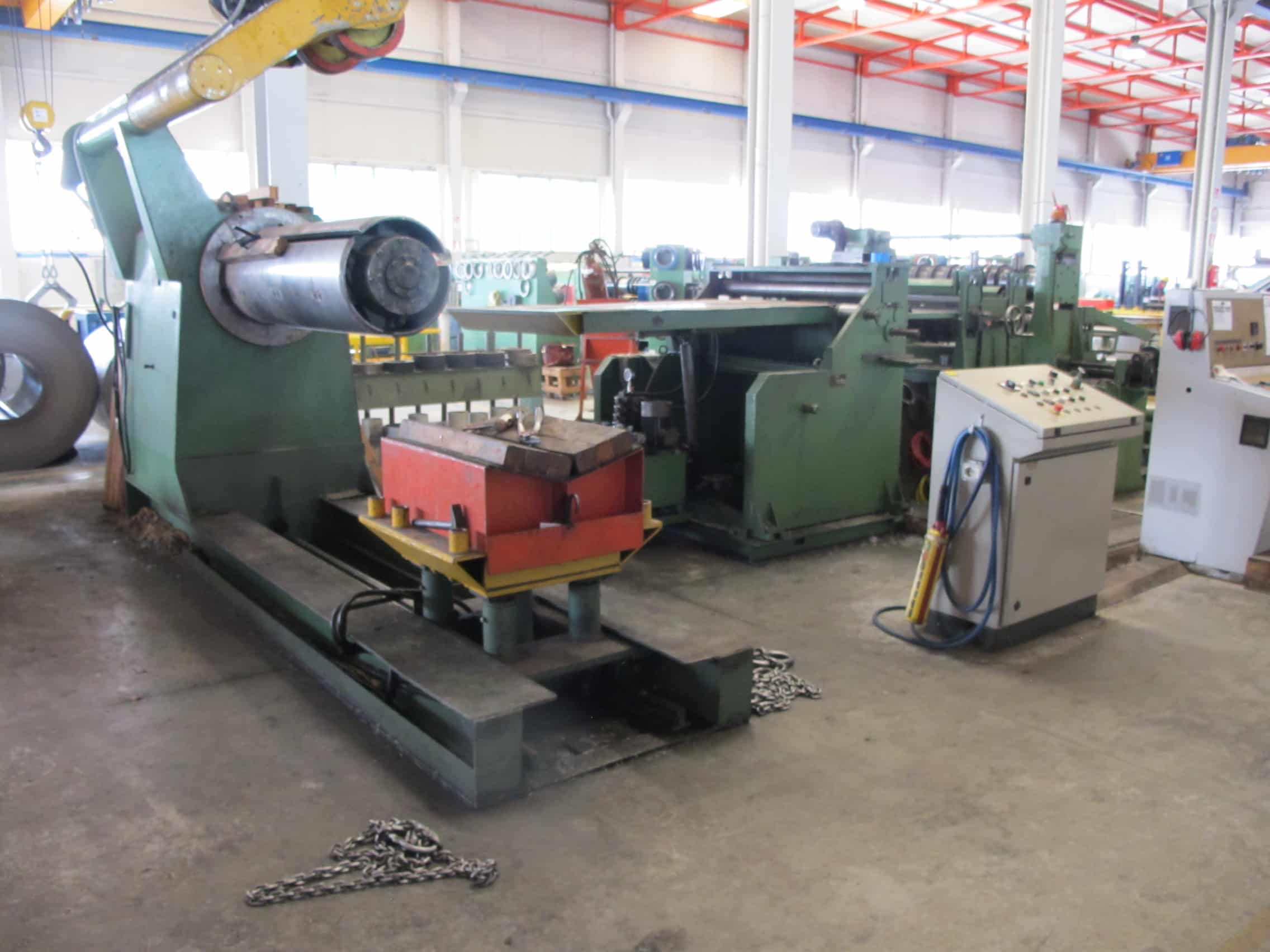

– Coil loading car, over-floor
– Decoiler:
mandrel diameter: 480 – 530 mm.
Motorized snubber roll.
– Telescopic coil opener.
– Feeding pinch-roll-strightening roll.
– Strip Guide.

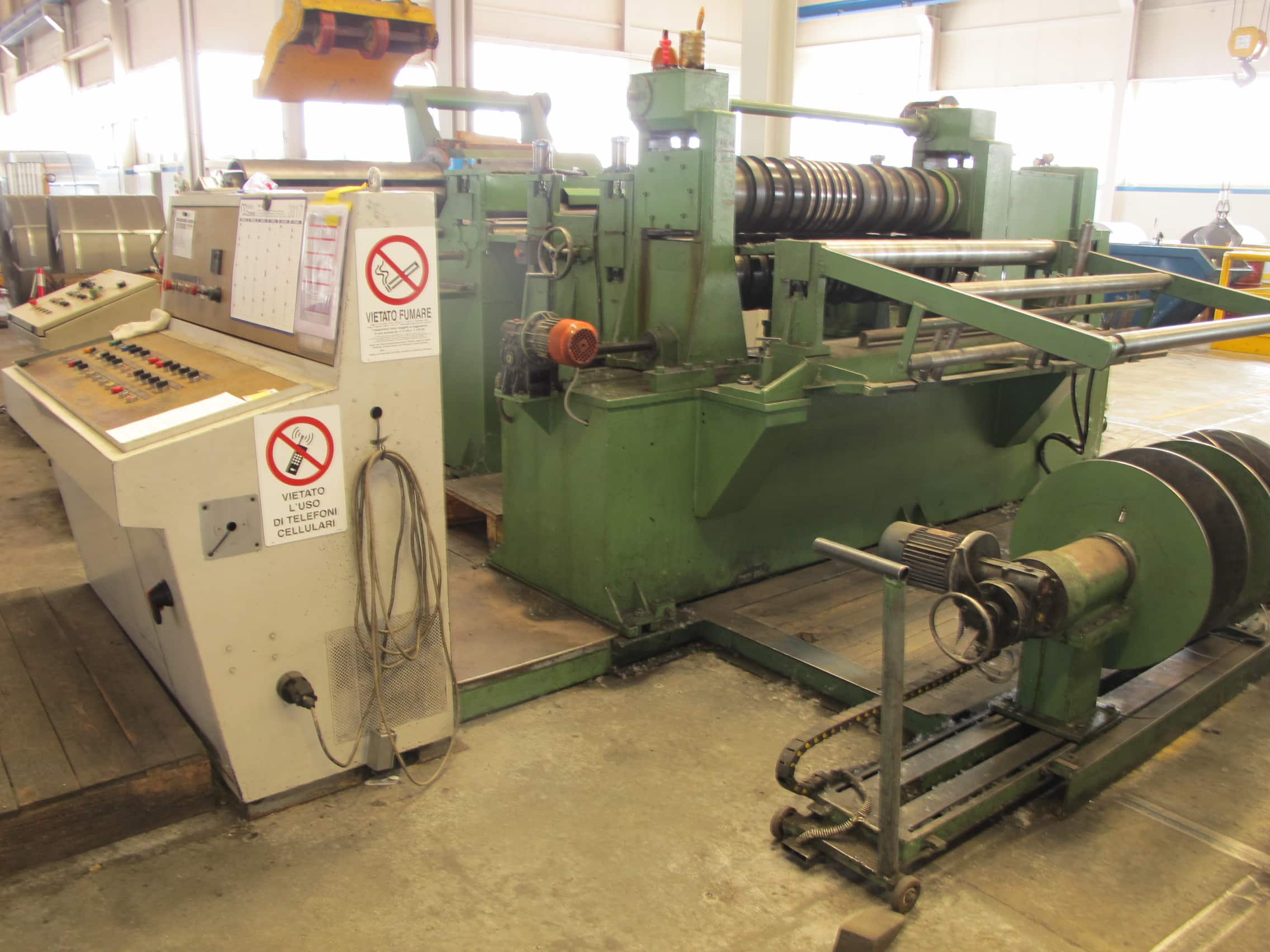

– Slitting shear.
Mandrel diam. 160 mm.
DC motor.
– Double scrap winder (optionally can be replaced with scrap baller).
– Roller table to the loop.
– Bypass table.
– Roller table with separating roller.
– Felt press, pneumatic, 3 air hoses
– Deflector roll.
– Recoiler, hydraulic expansion diam. 508 mm , with separating arm and ejector.
DC motor.
– Motorized turnstile 2 arms 12t.
– Hydraulic unit.

Electrical Equipment: not available
