Levellers Archives

Showing all 9 results

MACCHINE

RIF.	Description	builder

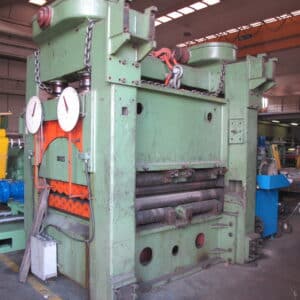

L.4	4-HIGH LEVELLER 1500 x 10 Max width: 1.550 mm Thickness min-max: 4,0-10 mm (S325JR) N. 13 work rolls diam. 140 mm width 1.650 mm	WMW-UBR
L.2	LEVELLER 4-HIGH 2.000 X 3,0 Type: 2200/2,2/9 Material width, max: 2.050 mm Thickness: min-max 0,7-3,0 mm (Rm=320 N/mm2) Work rolls: n. 9 diam. 48 mm width 2.200 mm	UNGERER

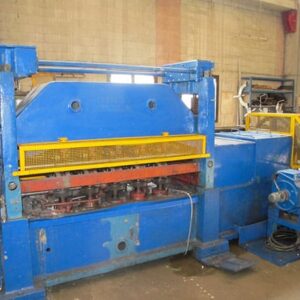

L.14	PRECISION LEVELLER 4-HIGH 1600×2,0 Material width, max: 1.600 mm Thickness: min-max 0,4-2,0 mm (Rm=320 N/mm2) Work rolls: n. 19 diam. 45 mm width 1.680 mm	MARIANI

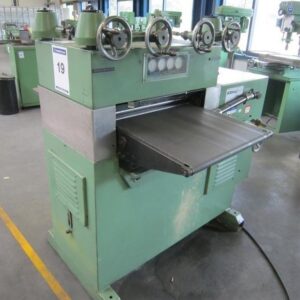

L.5	PRECISION LEVELLER 4-HIGH 550×3 Material width, max: 550 mm Thickness: min-max 0,2-3,0 mm Work rolls: n. 21 diam. 30 mm width 600 mm
L.3	PRECISION LEVELLER 4-HIGH 700×3 Material width, max: 700 mm Thickness: min-max 0,2-3,0 mm (Rm=320 N/mm2) Work rolls: n. 23 diam. 32 mm width 750 mm	MARIANI

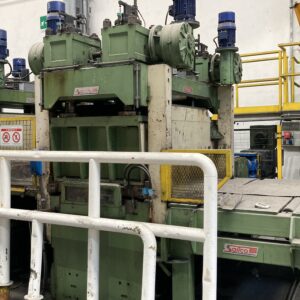

L.1	PRECISION LEVELLER 6-HIGH 1600 x 2,0 Max width: 1.600 mm Thickness min-max: 0,3-2,0 mm (Rm=400 N/mm2) N. 21 work rolls diam. 36 mm width 1.700 mm	SACMA

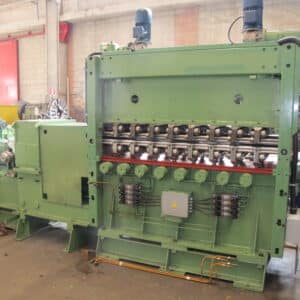

L.11	PRECISION LEVELLER 6-HIGH 1600 x 2,0 Max width: 1.600 mm Thickness min-max: 0,3-2,0 mm (Rm=400 N/mm2) N. 21 work rolls diam. 36 mm width 1.700 mm	SALICO
L.11-1	PRECISION LEVELLER 6-HIGH 1600 x 2,0 (Copia) Max width: 1.600 mm Thickness min-max: 0,3-2,0 mm (Rm=400 N/mm2) N. 21 work rolls diam. 36 mm width 1.700 mm
L.11-1-1	PRECISION LEVELLER 6-HIGH 1600 x 2,0 (Copia) (Copia) Max width: 1.600 mm Thickness min-max: 0,3-2,0 mm (Rm=400 N/mm2) N. 21 work rolls diam. 36 mm width 1.700 mm
